Motor parameters:
16mm precision coreless geared motor, taken from machine. The quality of motor is not bad. The appearance is slightly scratched during transportation. The nickel-plated shell is very bright. Visually, these geared motors are rarely used. Some wire ends have not been welded. Some With the thread trimmer removed, the gears inside the gearbox are hardly worn.

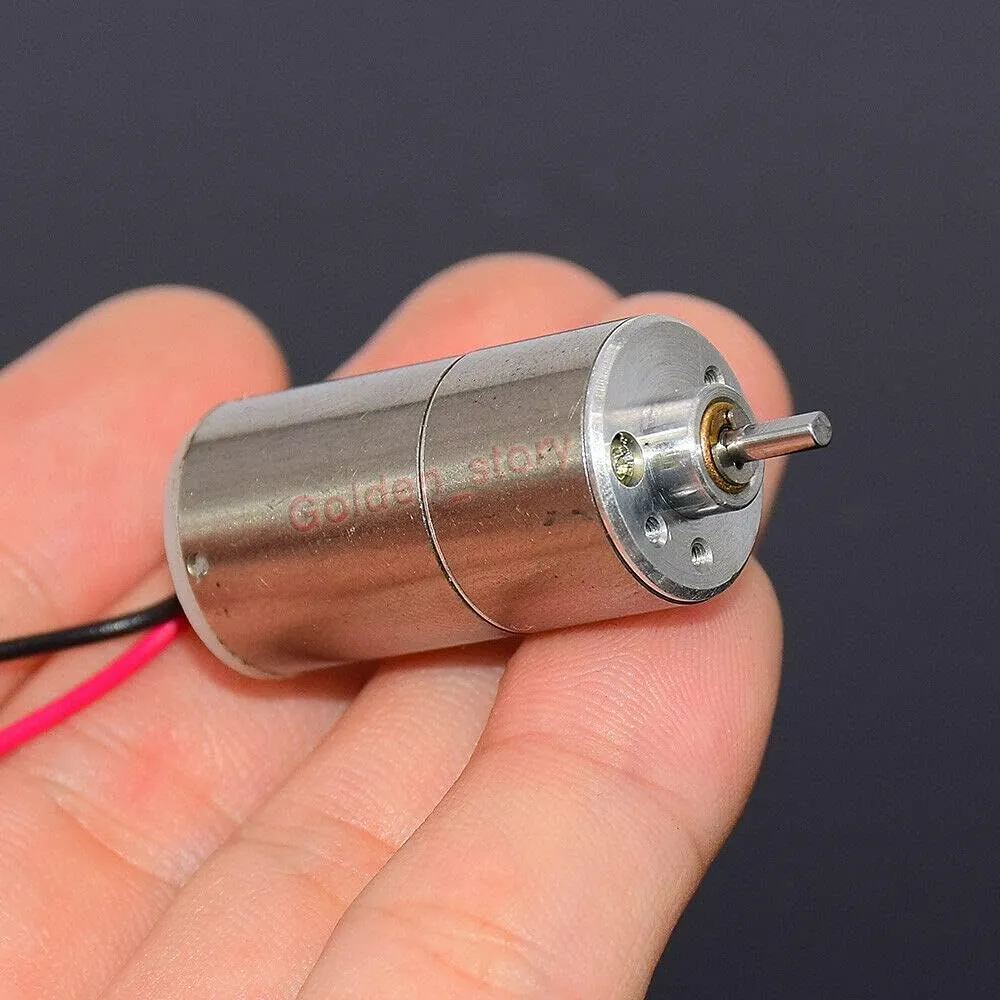

The motor is a hollow cup motor with a diameter of 16mm. It runs quietly, saves energy, and is responsive. It has much better performance than ordinary motors and high manufacturing costs. The reduction gearbox is an all-metal gear. The reduction ratio is approximately 125: 1.
The no-load current of the geared motor is only about 10-15ma, which is very energy-saving. The stalled current is 0.42A at 5V, the stalled torque is 1.3kg.cm, and the rotational speed is 48-80 between 3-5V.
The motor weighs about 23 grams.
Package includes:
Gear Motor x 1pcs
Item specifics:
Usage: Home Appliance
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Gear Motor
Certification: CCC
Origin: Mainland China
Base rpm: 80RPM
Shaft diameter: 2mm(D shaft 1.75mm)
Model: 16mm Gear Motor
Country/region of manufacture: China
Current type: DC
Gear ratio:about 125: 1
Nominal rated input voltage: 3 V, 5V
